6020

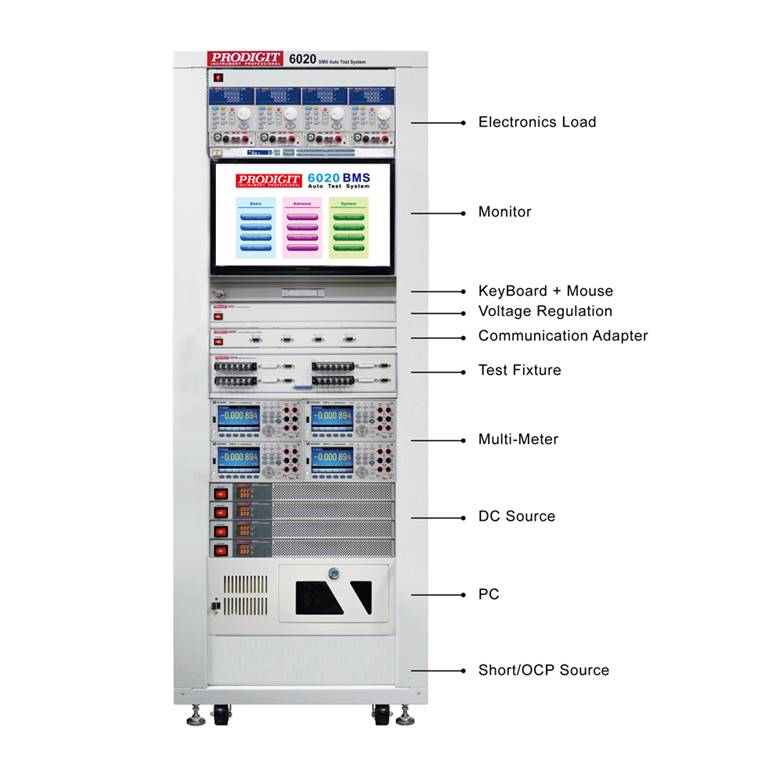

BMS Test System
Description
l 3System
Authority Assignment: User Authority Management, which allows different users
to assign different permissions
l High
Extensibility: for multi-string battery cell, 4 cells per channel, expandable
from 1 to 16 cells per strings
l High
compatibility: for a wide range of charge and discharge specifications, and
with multi-level current protection test
l Battery
simulation device modular design: Use one string 16 cells or four string 4
cells battery, simulation device can simulate 0.1 ~ 5V analog battery cell
voltage, you can test the core specifications of the PCM product, such as: PCM
OC sleep power self-consumption, each
string CELL of the charge and discharge protection and balance function.
l

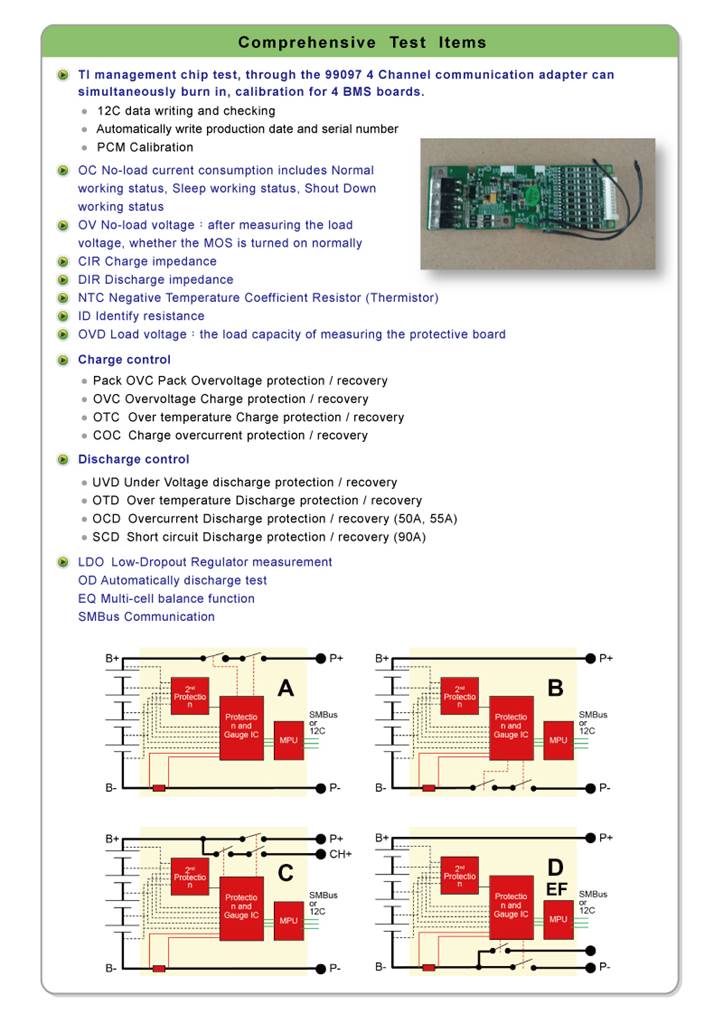

Testing Item includes the BMS DC internal resistance, AC
internal resistance, working current consumption, battery cell balance, NTC simulation, various over or under voltage, over
current, short circuit
protection/recovery actions, etc., using 6020 BMS ATE can provide 1 to 4
groups of BMS test high-performance automatic test system, for each BMS
function one by one and fast validation, which in the design verification or
quality inspection is suitable for a group of BMS test system, however in the
mass production required for rapid
testing that needs for four groups of simultaneous testing BMS test system.
Features
l
Cost effective and
full - featured modular design
l
Multi - function
test capability for charger, adapter, LED driver power
l
Multi-U.U.T test simultaneously capability，significantly enhance the production line throughput
l
Support Windows 7 operation
system
l
Open architecture
software platform
1.
Support related
hardware expansion
2.
User editable test
item
3.
User editable test
program
4.
User editable report
format & statistical report
5.
On-line control
function
6.
User authority
control
7.
Support Bar Code
Reader.

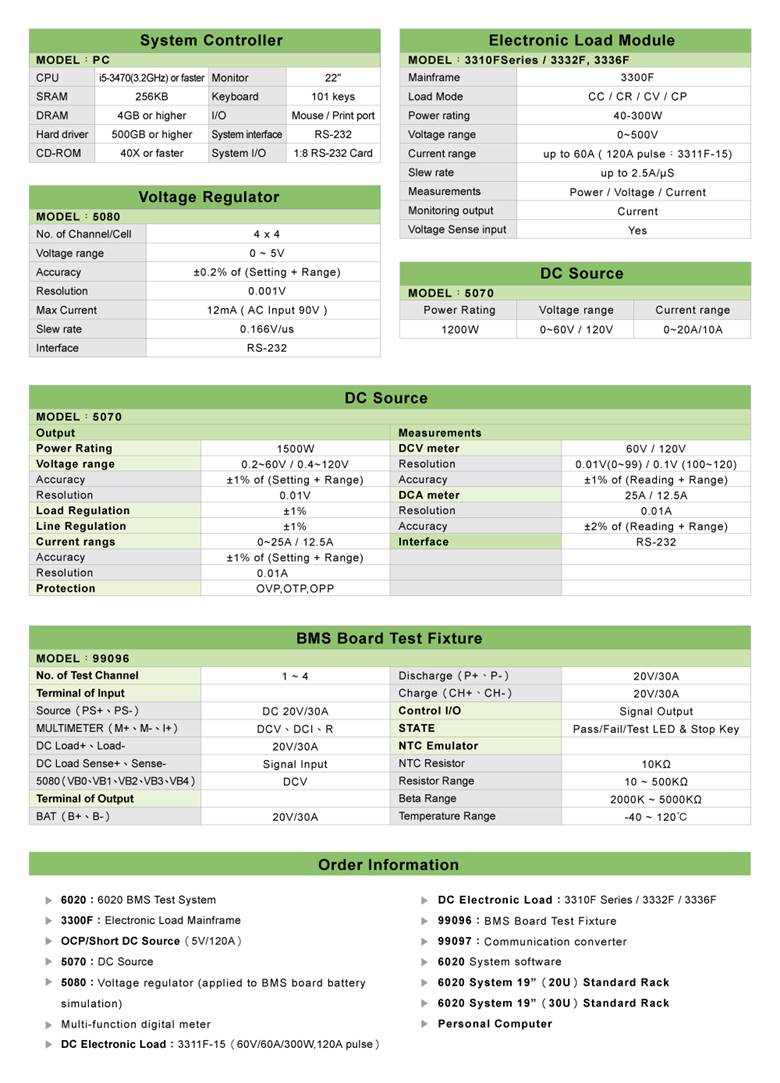

Specifications
